常见PCB封装

发表于 更新于 阅读次数： 本文字数： 325 阅读时长 ≈ 1 分钟

表面贴片封装

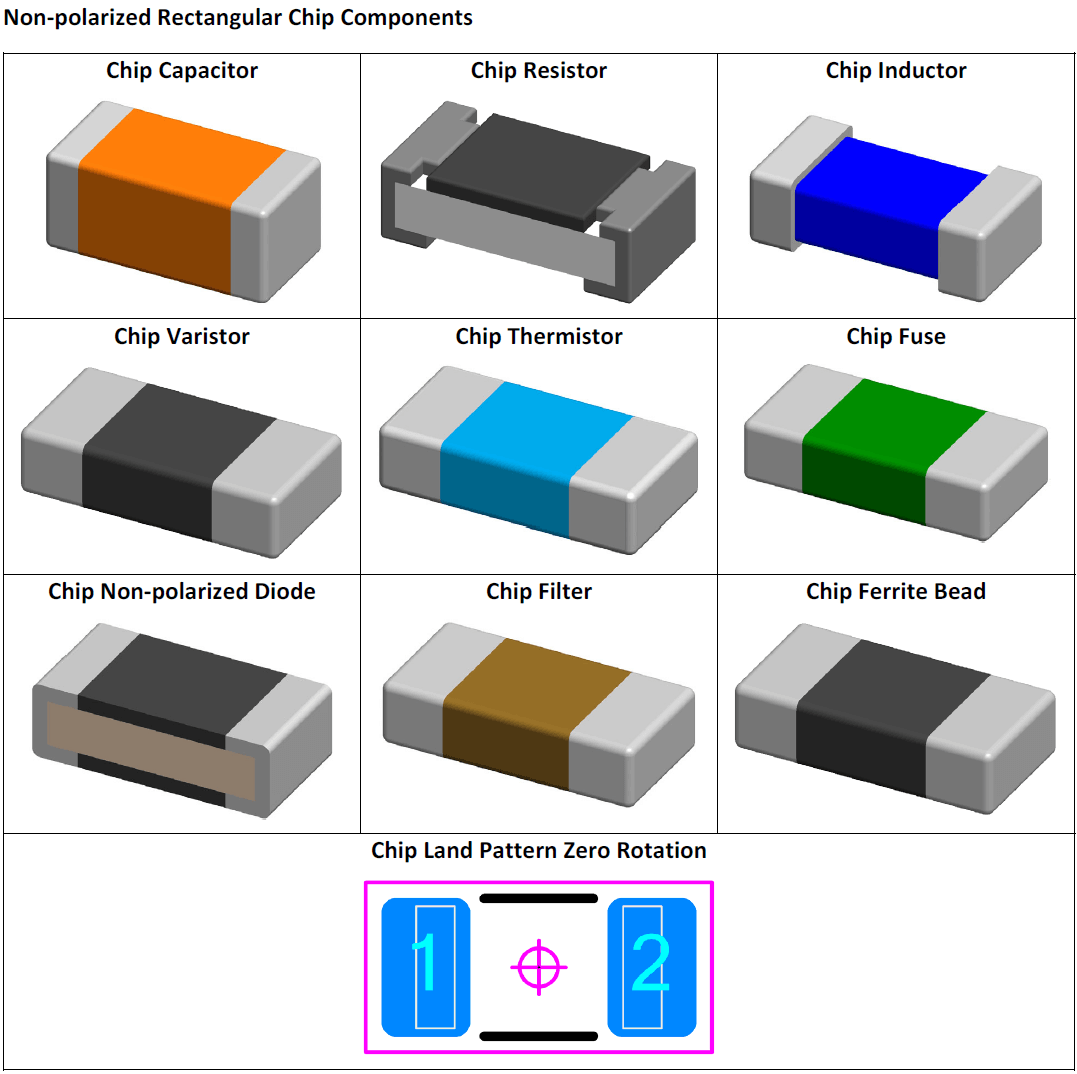

Non‐polarized Rectangular Chip Components

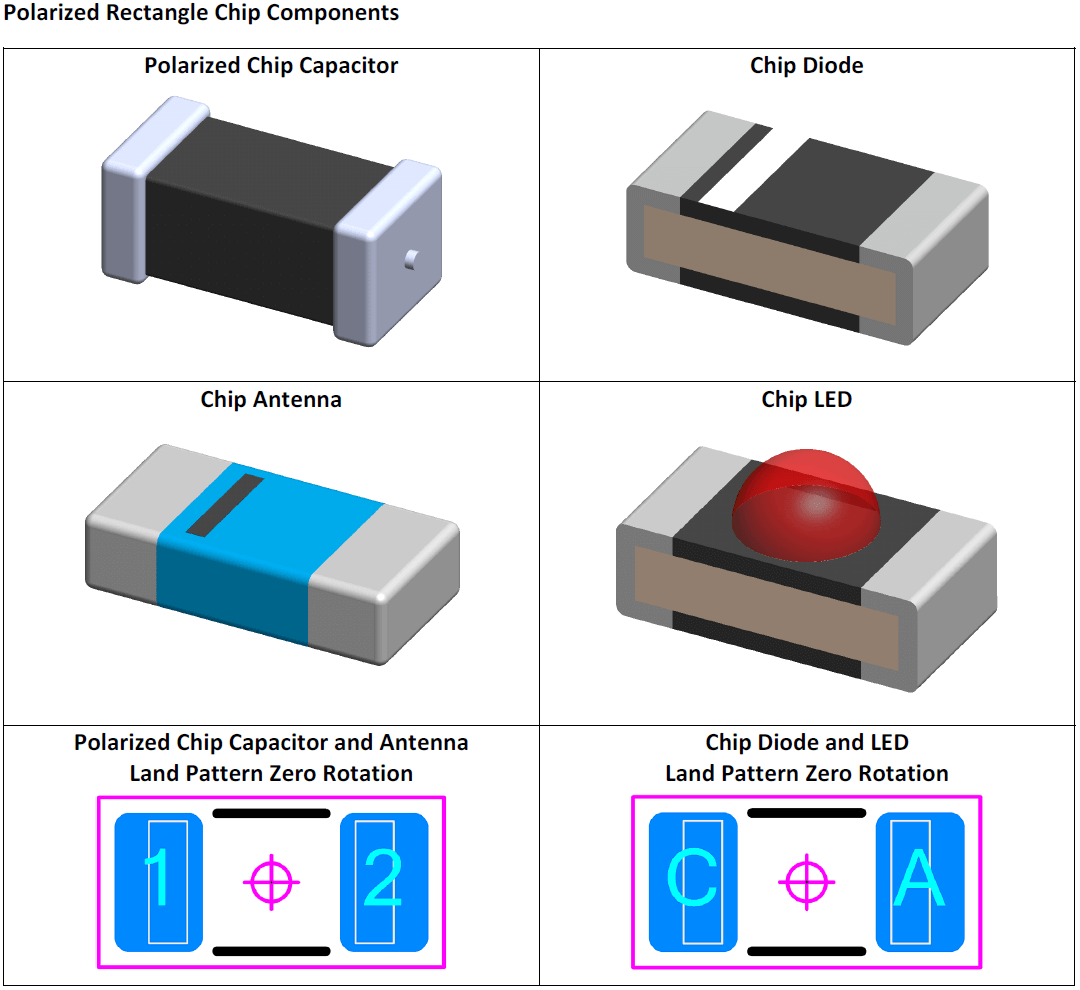

Polarized Rectangle Chip Components

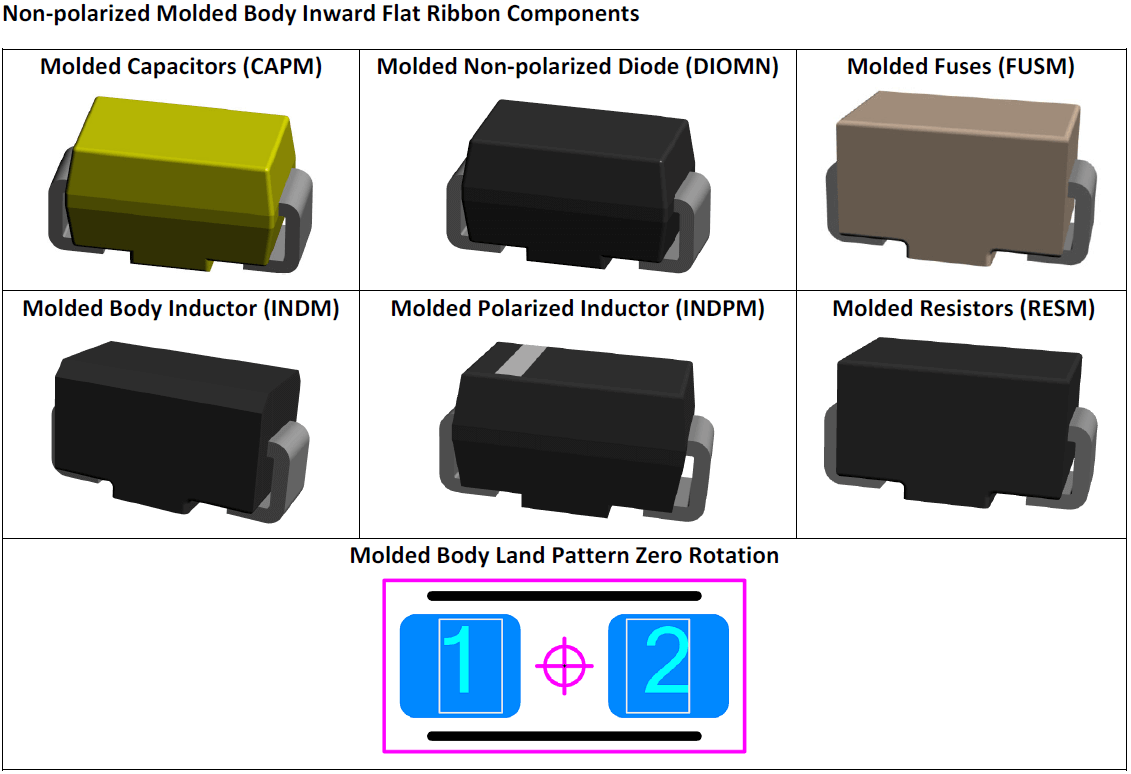

Non‐polarized Molded Body Inward Flat Ribbon Components

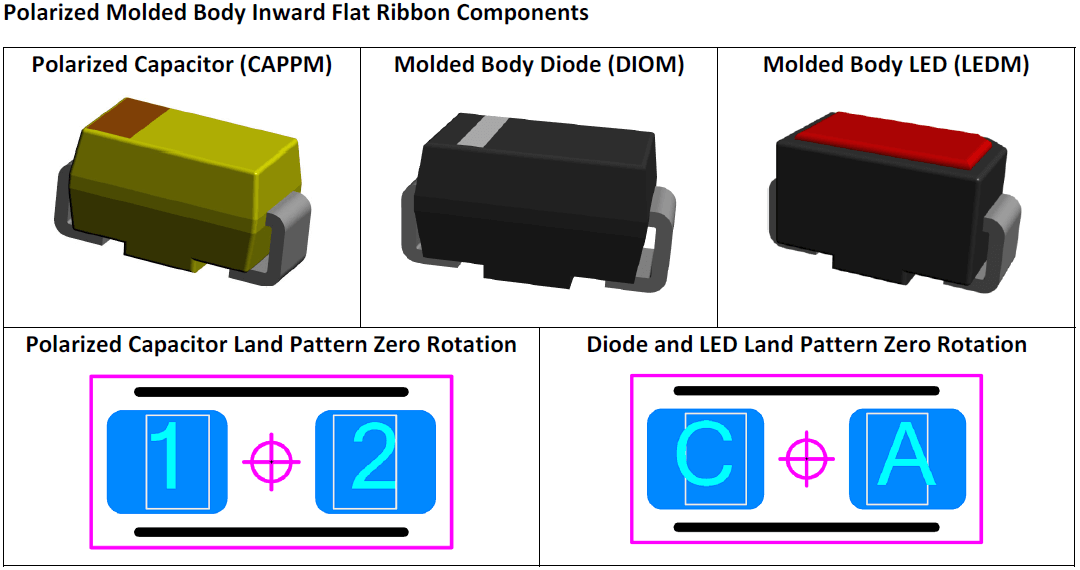

Polarized Molded Body Inward Flat Ribbon Components

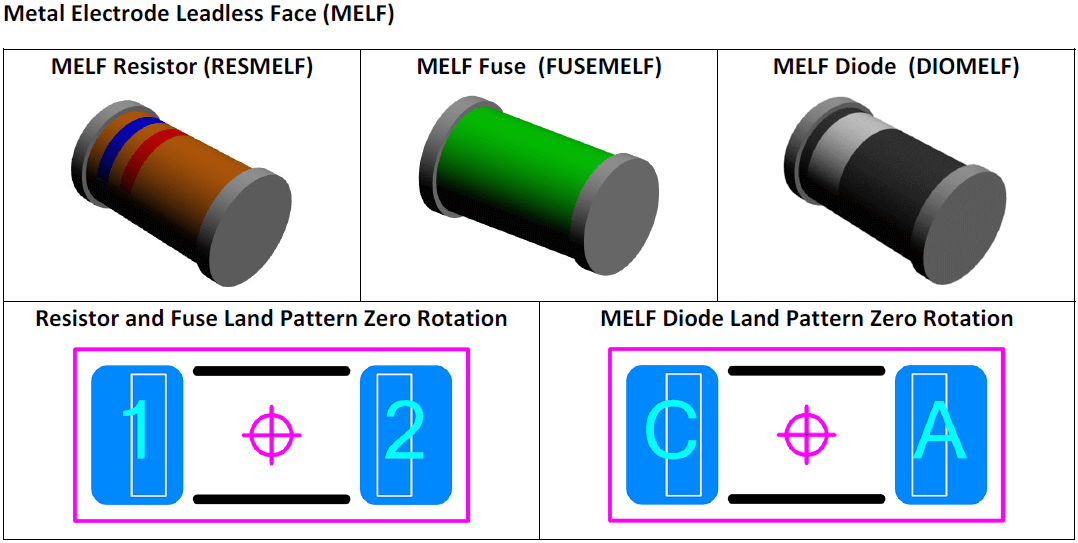

Metal Electrode Leadless Face (MELF)

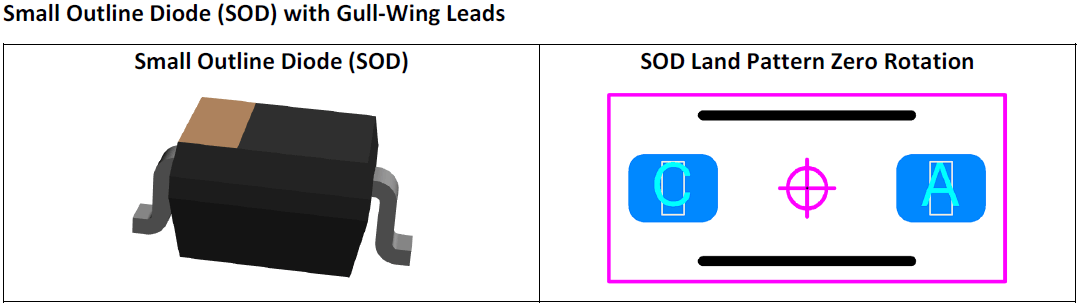

Small Outline Diode (SOD) with Gull‐Wing Leads

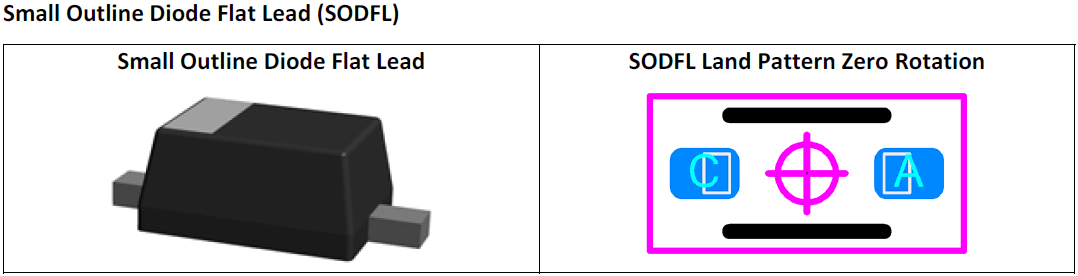

Small Outline Diode Flat Lead (SODFL)

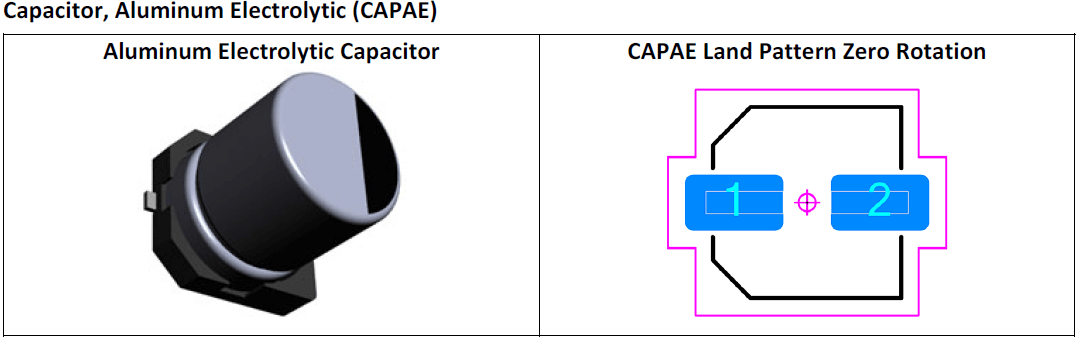

Capacitor, Aluminum Electrolytic (CAPAE)

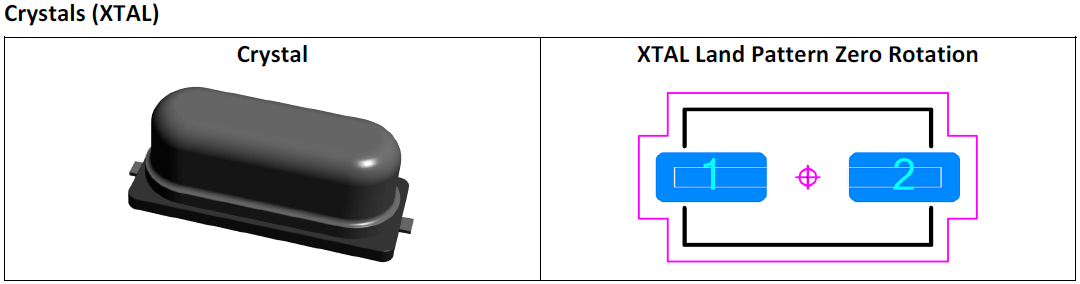

Crystals (XTAL)

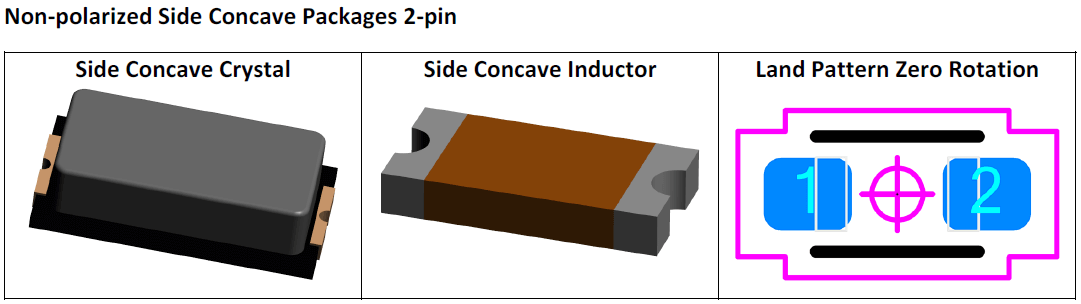

Non‐polarized Side Concave Packages 2‐pin

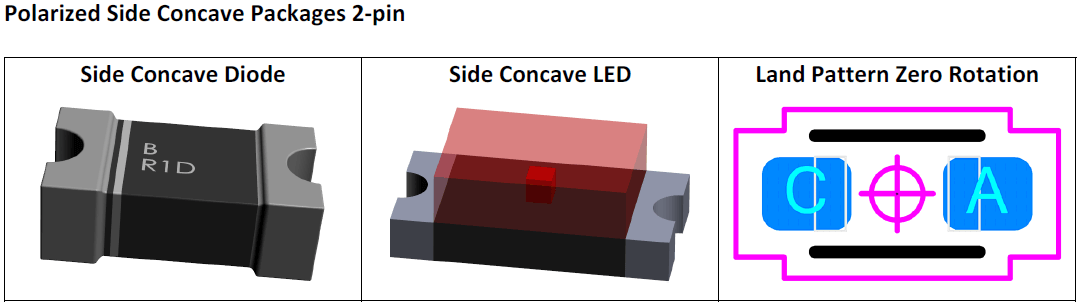

Polarized Side Concave Packages 2‐pin

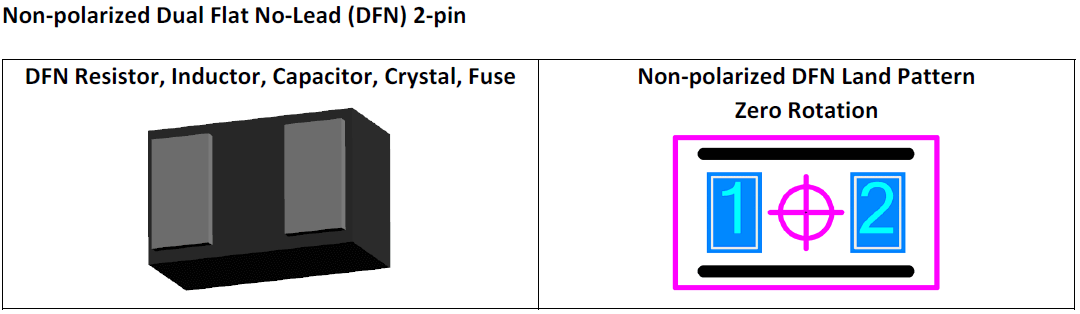

Non‐polarized Dual Flat No‐Lead (DFN) 2‐pin

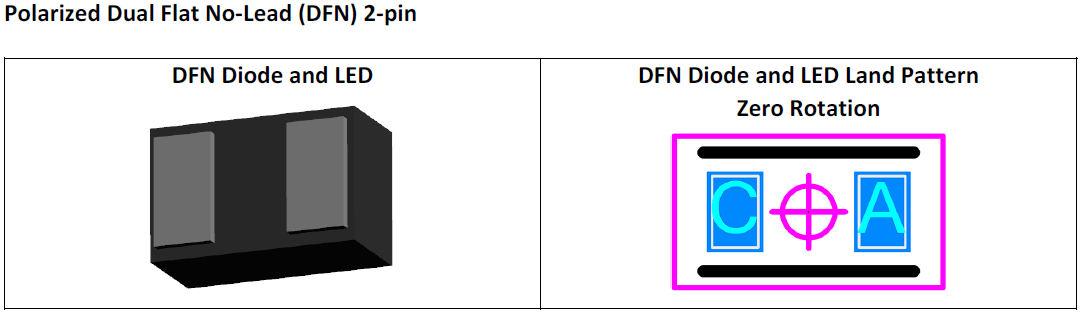

Polarized Dual Flat No‐Lead (DFN) 2‐pin

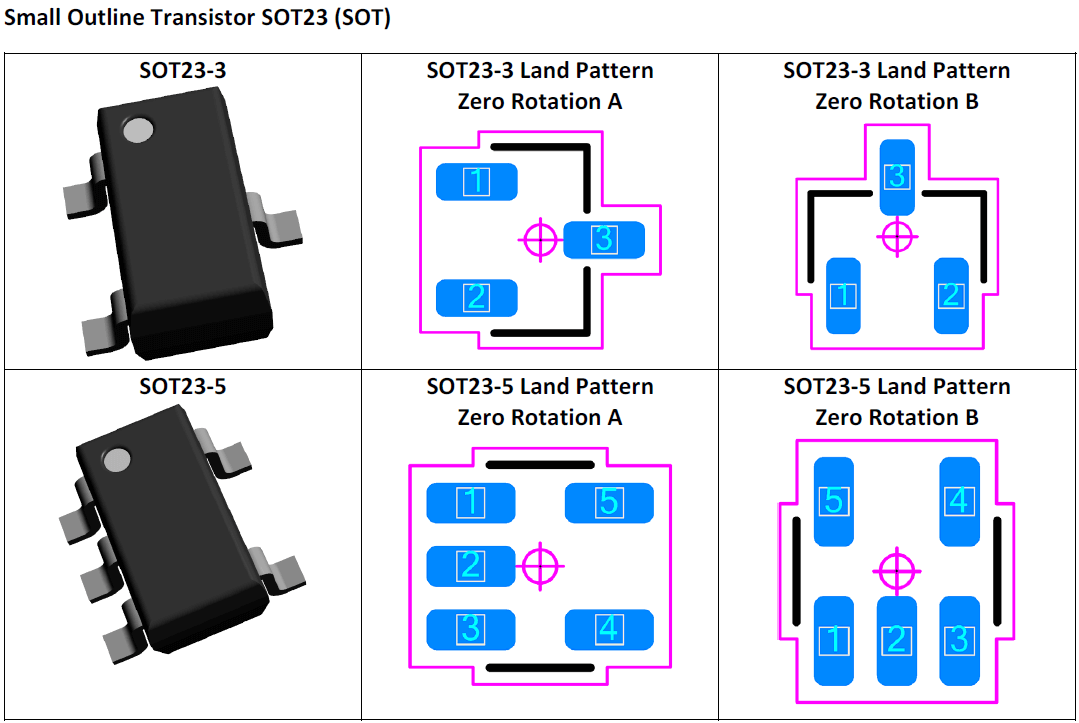

Small Outline Transistor SOT23 (SOT)

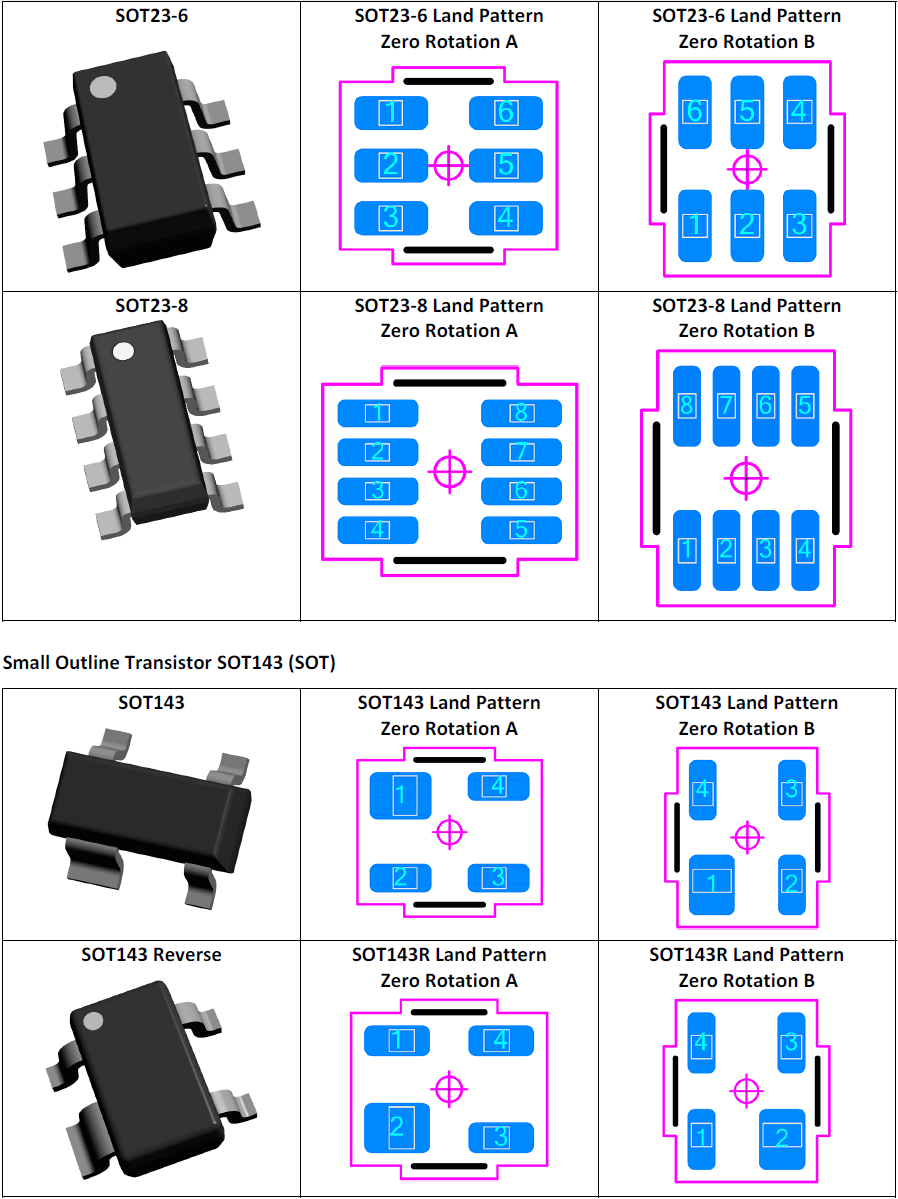

Small Outline Transistor SOT143 (SOT)

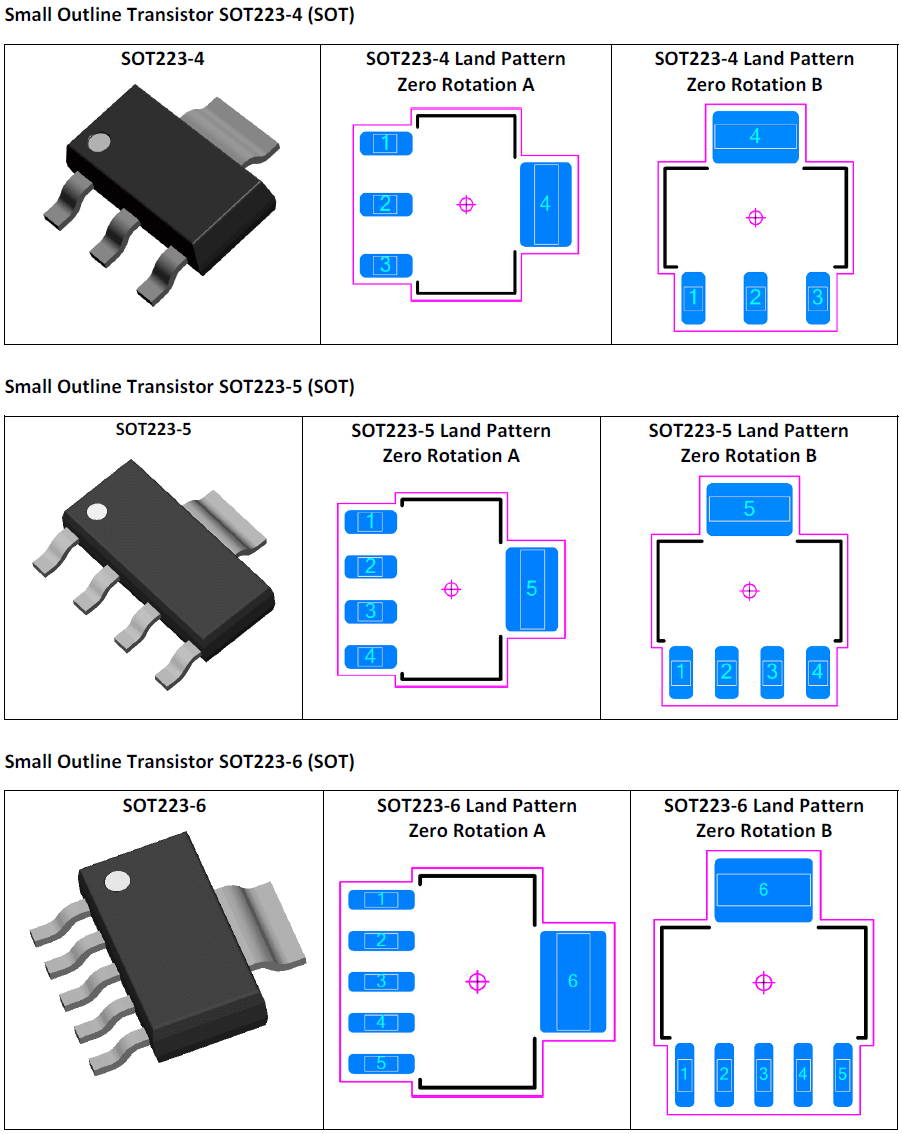

Small Outline Transistor SOT223 (SOT)

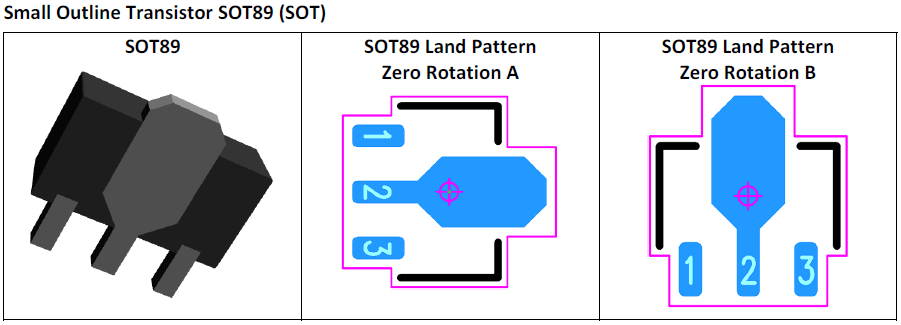

Small Outline Transistor SOT89 (SOT)

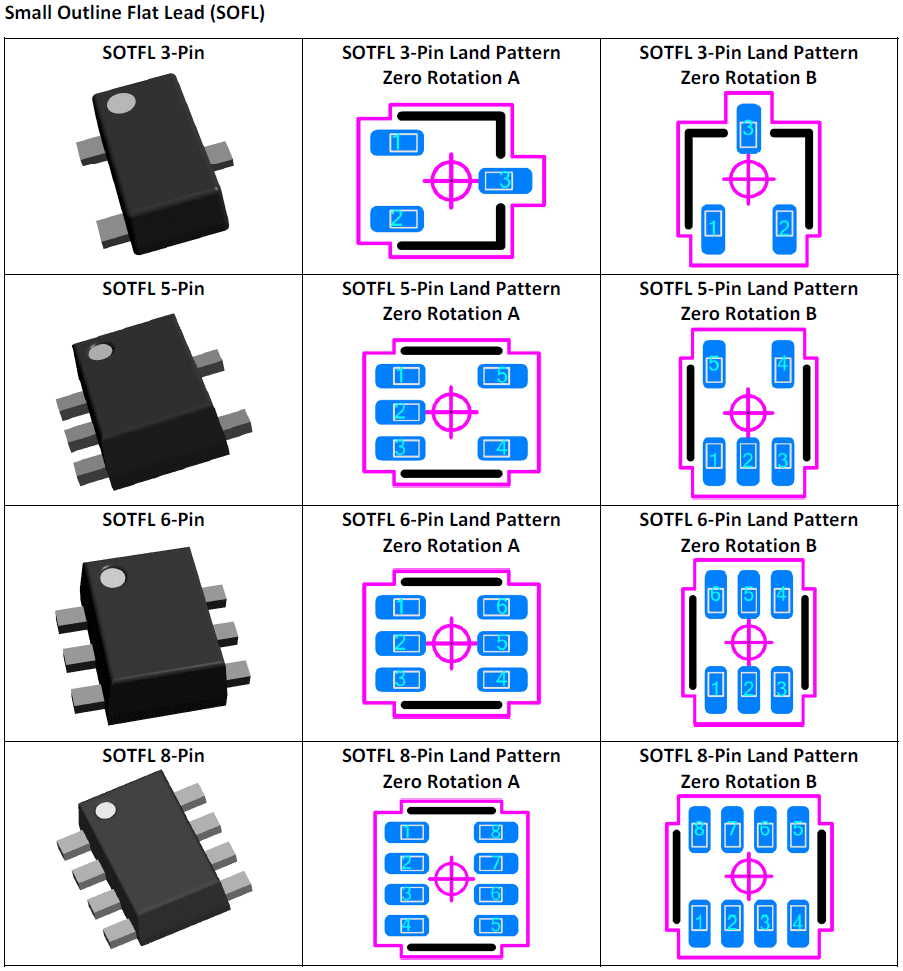

Small Outline Flat Lead (SOFL)

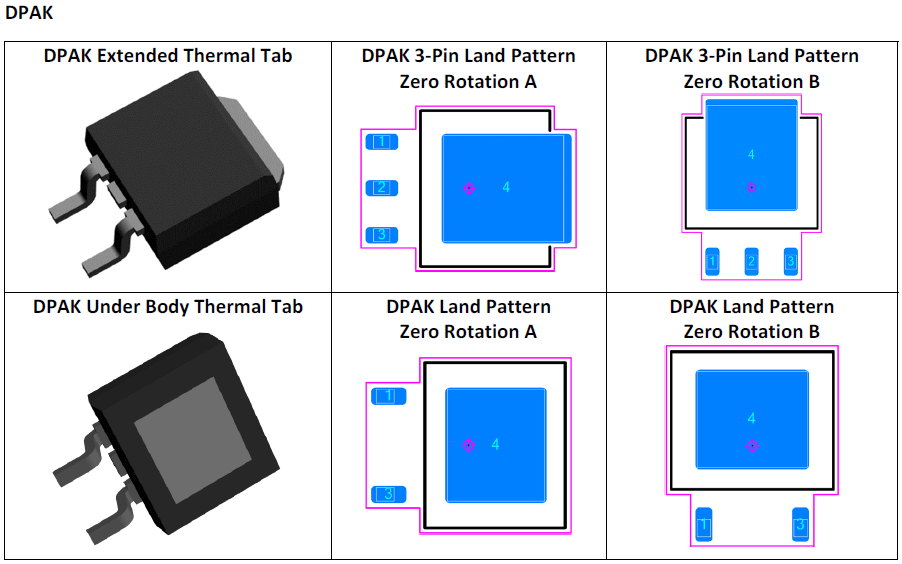

DPAK

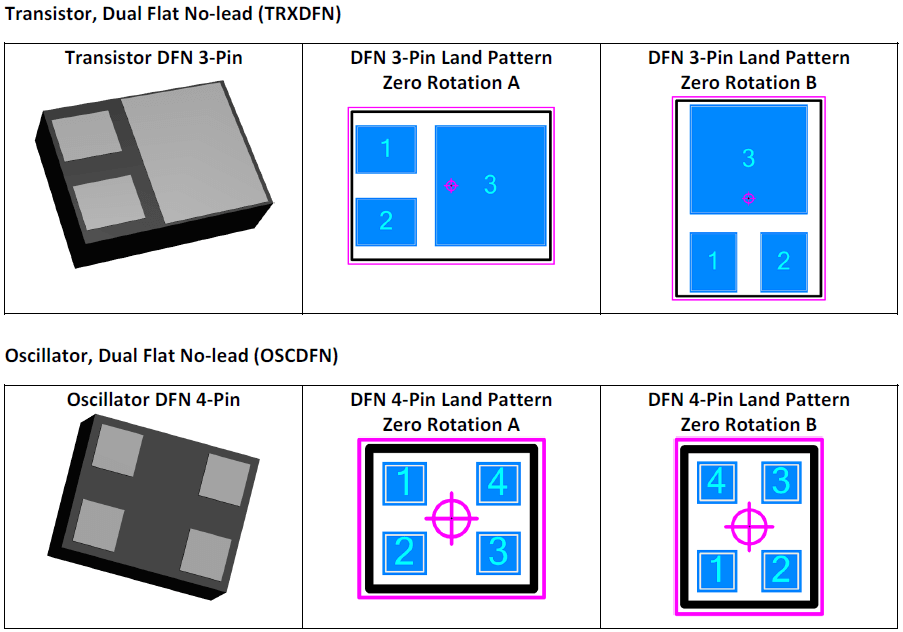

Transistor, Dual Flat No‐lead (TRXDFN) and Oscillator, Dual Flat No‐lead (OSCDFN)

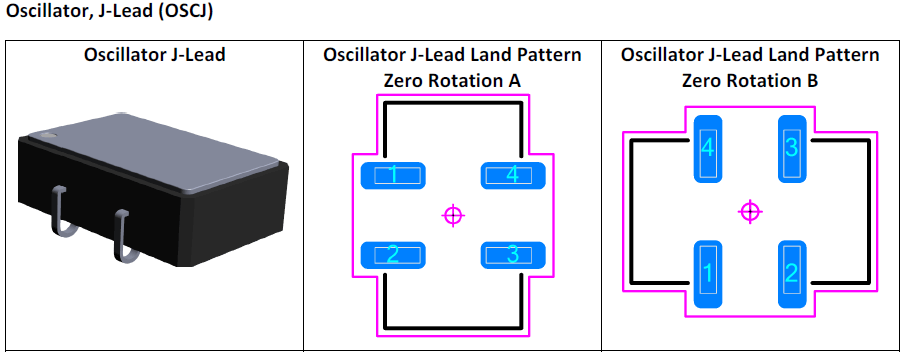

Oscillator, J‐Lead (OSCJ)

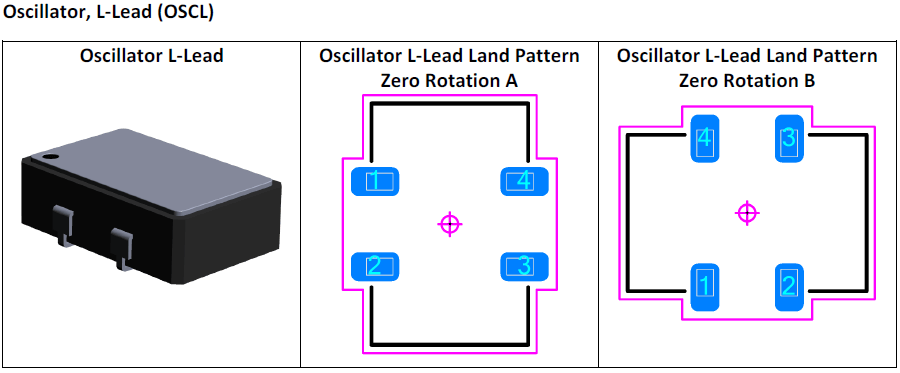

Oscillator, L‐Lead (OSCL)

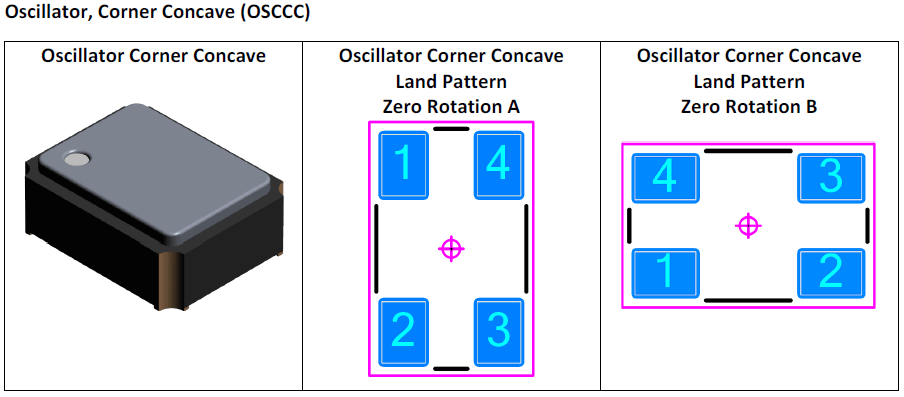

Oscillator, Corner Concave (OSCCC)

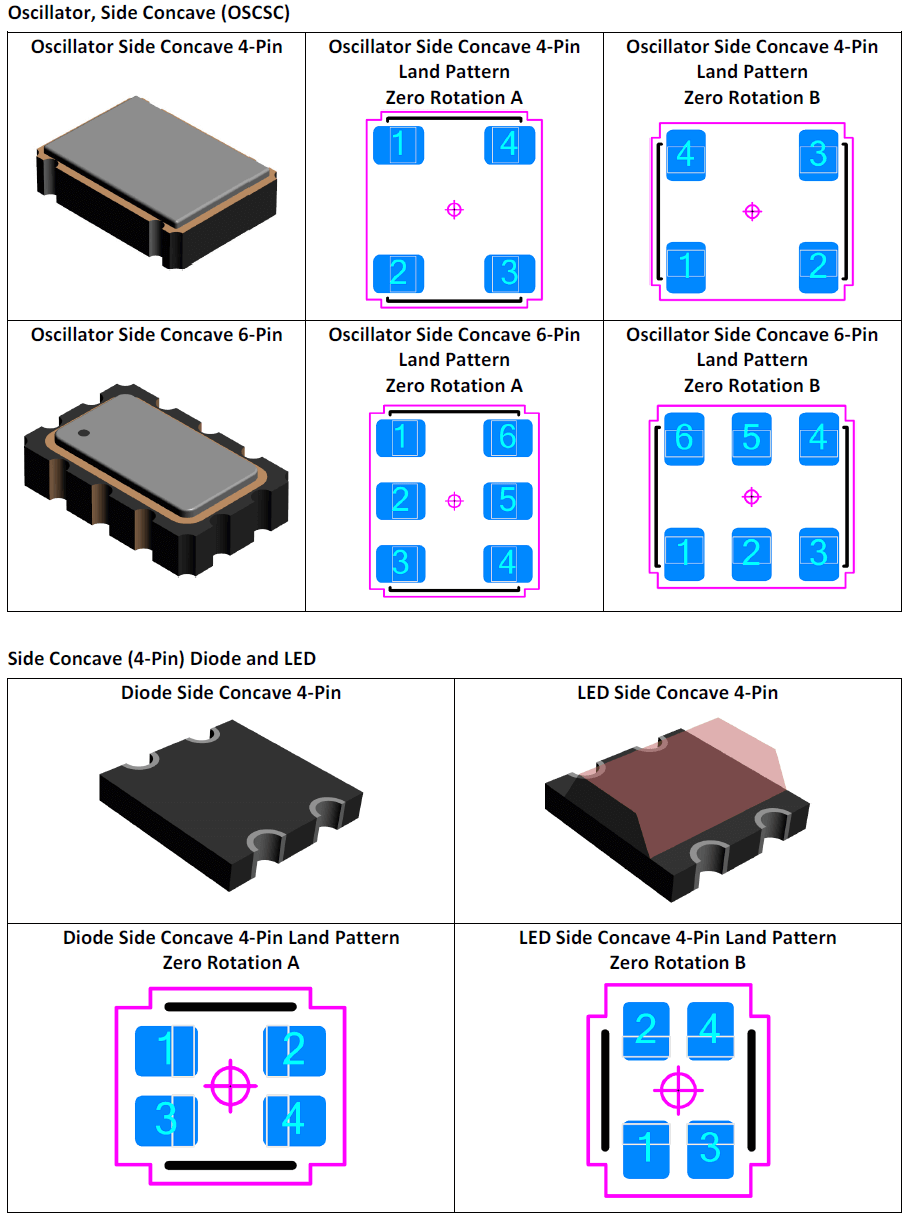

Side Concave

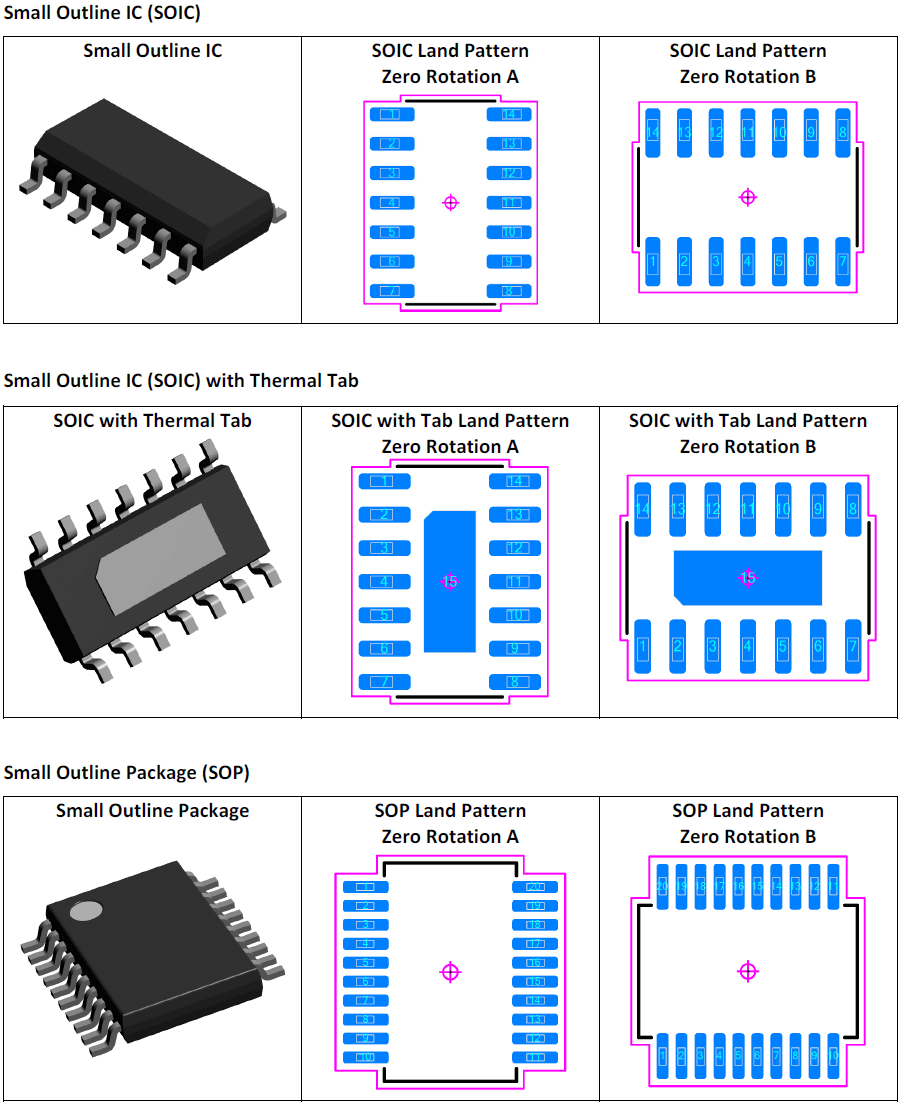

Small Outline IC (SOIC) and Small Outline Package (SOP)

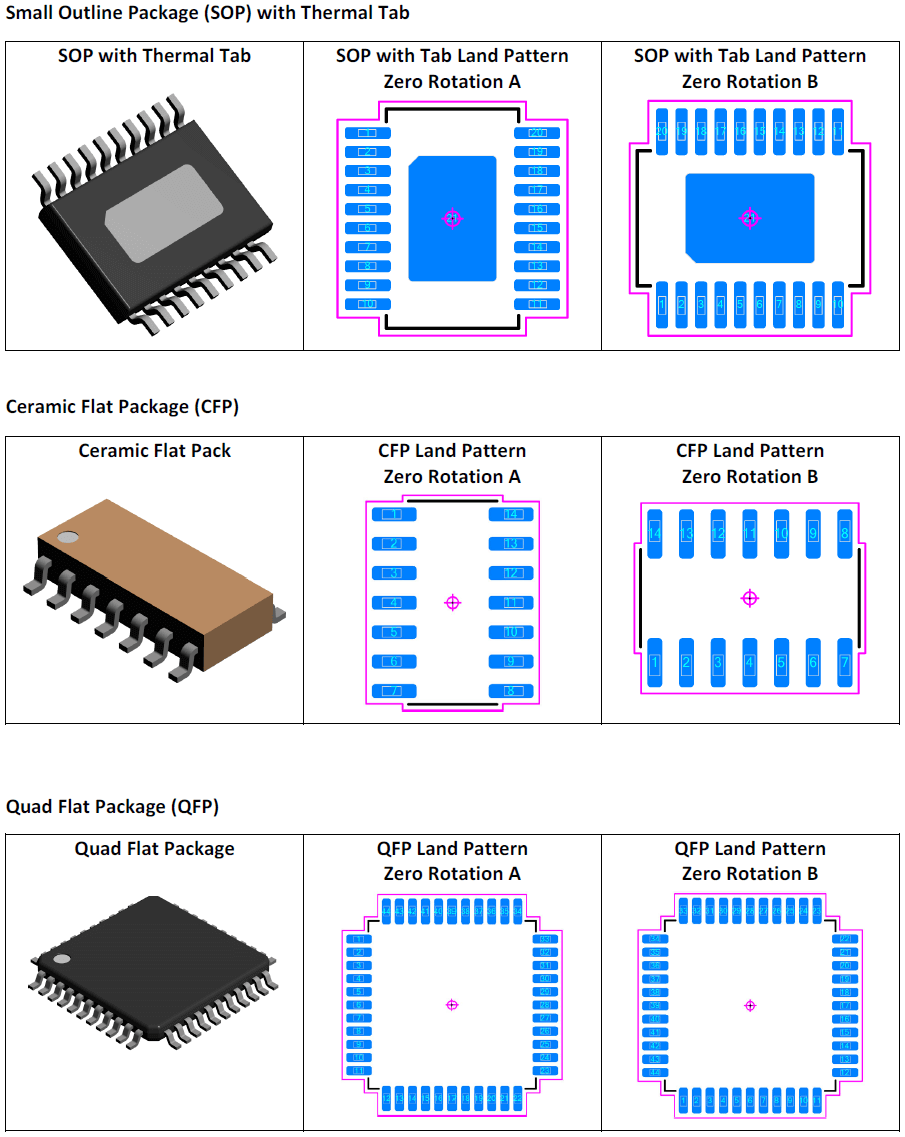

Small Outline Package (SOP) with Thermal Tab, Ceramic Flat Package (CFP), Quad Flat Package (QFP)

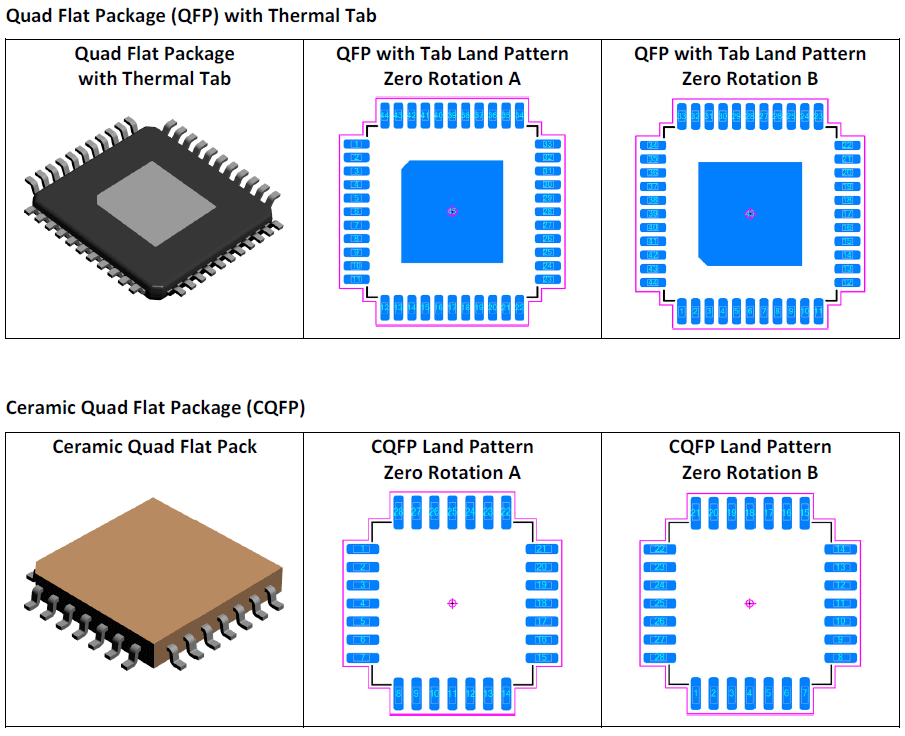

Quad Flat Package (QFP) with Thermal Tab, Ceramic Quad Flat Package (CQFP)

Small Outline J‐Lead (SOJ), Plastic Leaded Chip Carrier (PLCC)

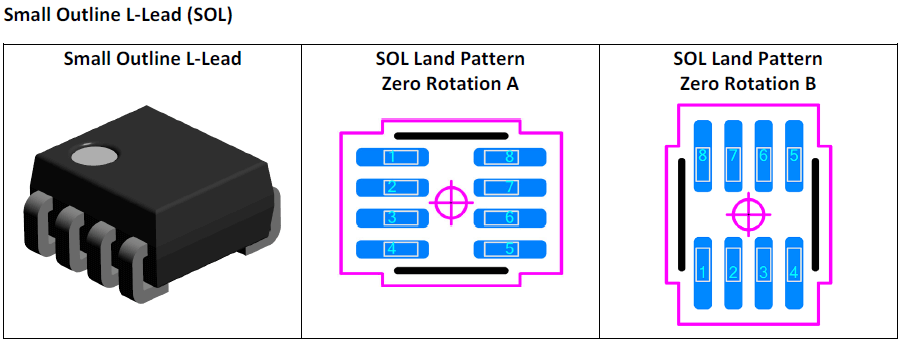

Small Outline L‐Lead (SOL)

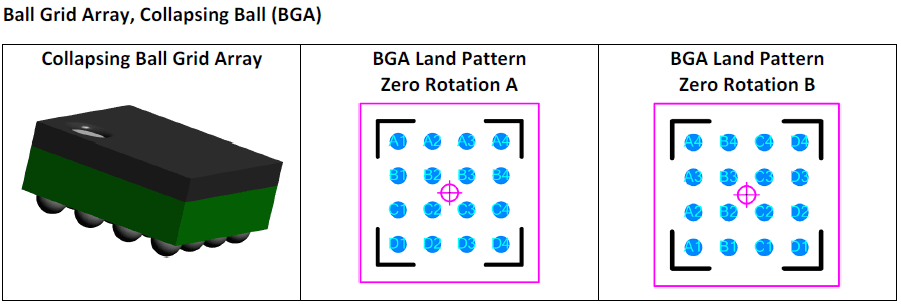

Ball Grid Array, Collapsing Ball (BGA)

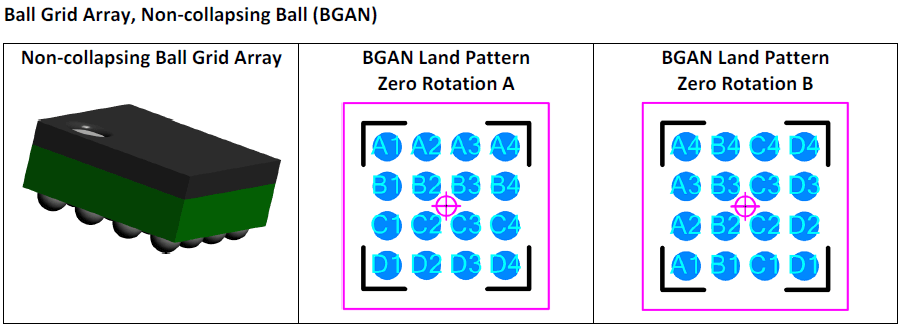

Ball Grid Array, Non‐collapsing Ball (BGAN)

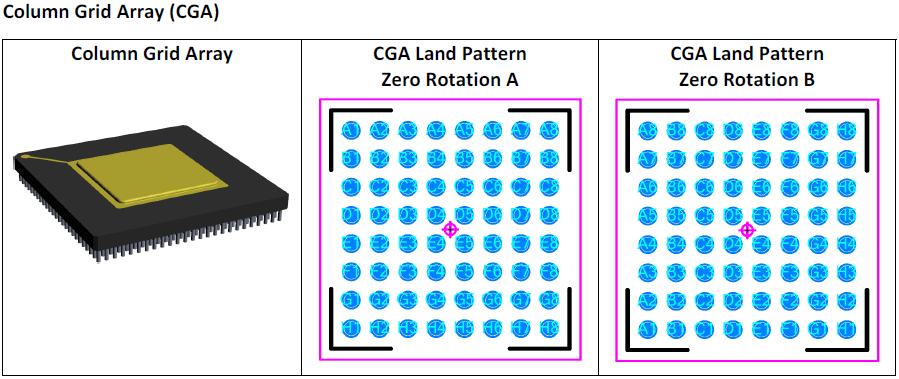

Column Grid Array (CGA)

Small Outline No‐lead (SON)

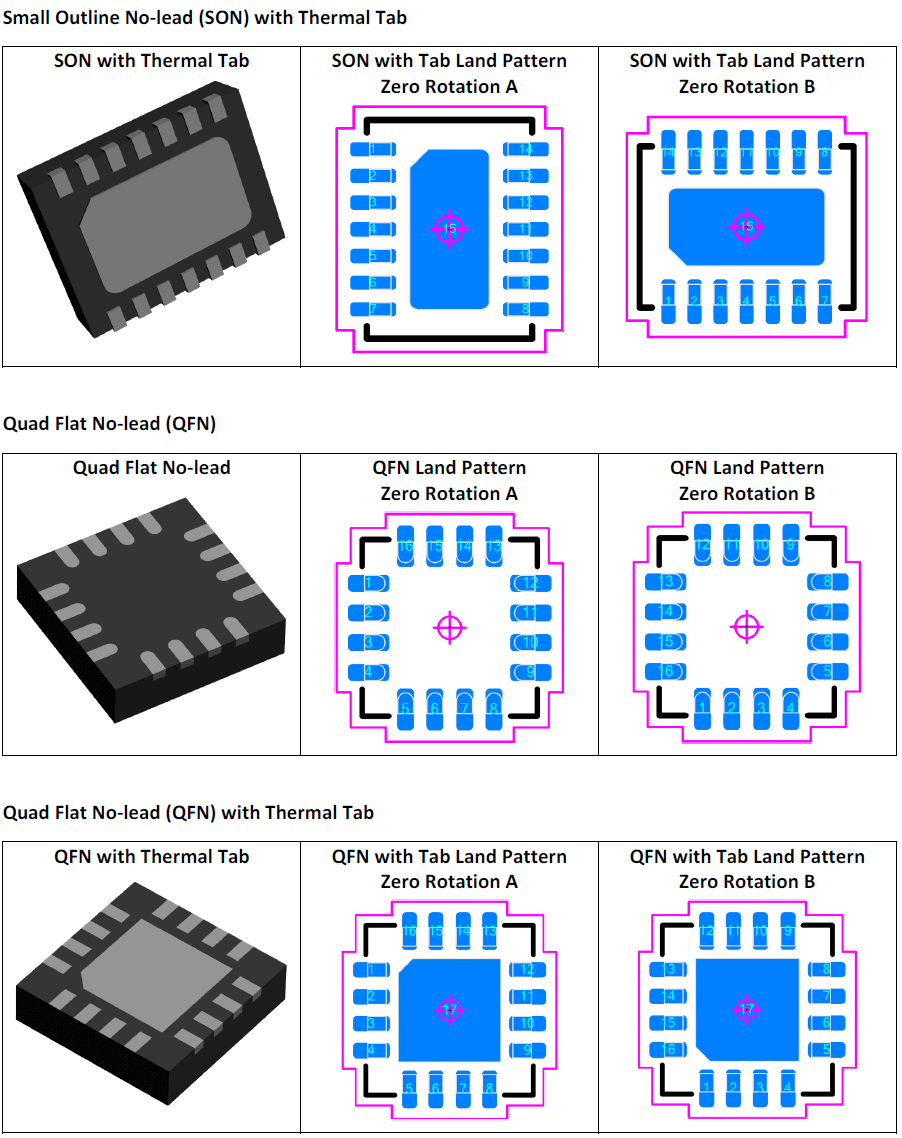

Small Outline No‐lead (SON) with Thermal Tab, Quad Flat No‐lead (QFN), Quad Flat No‐lead (QFN) with Thermal Tab

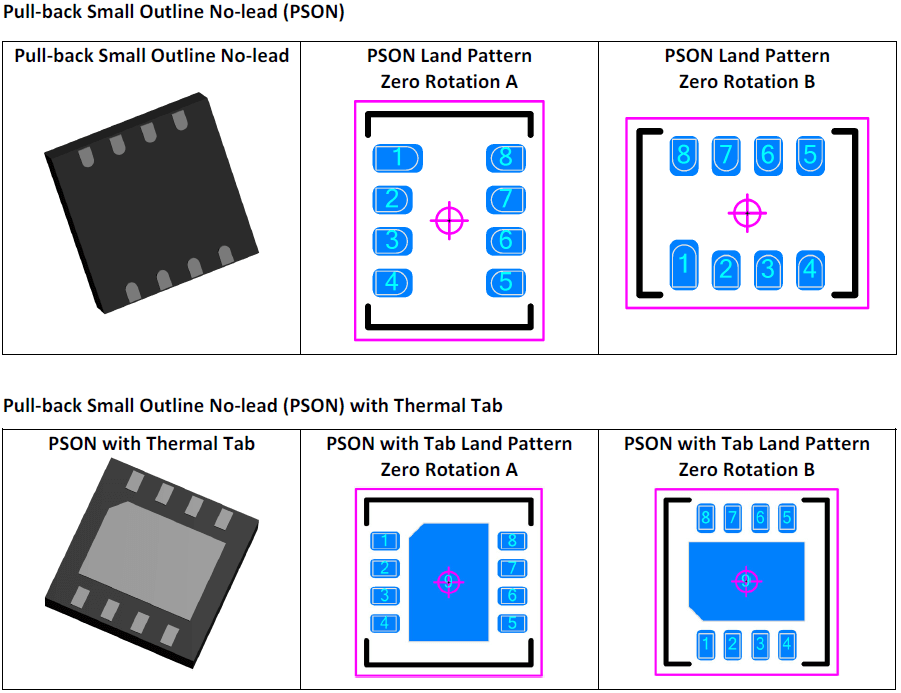

Pull‐back Small Outline No‐lead (PSON), Pull‐back Small Outline No‐lead (PSON) with Thermal Tab

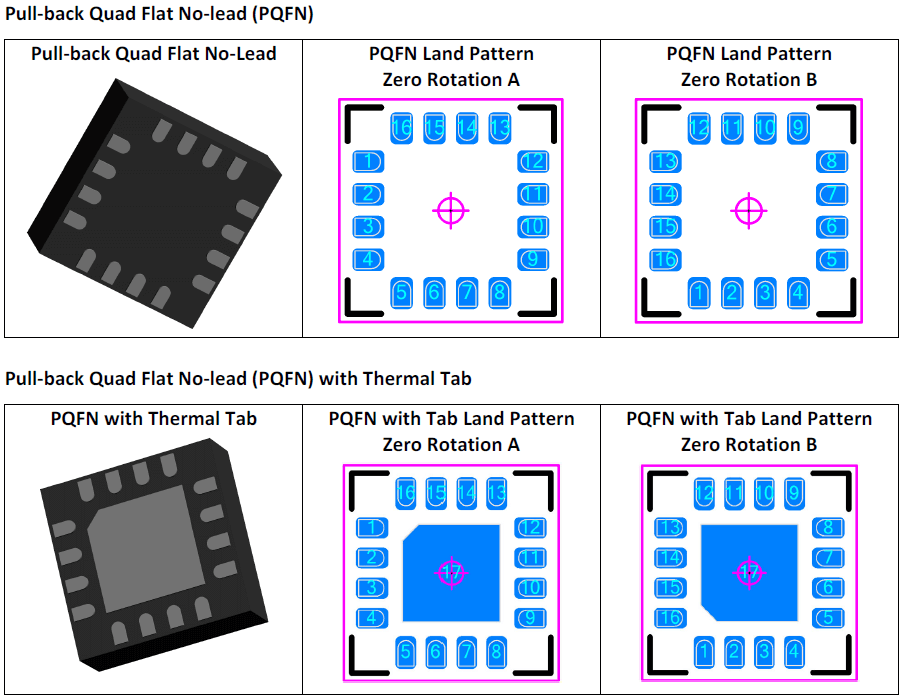

Pull‐back Quad Flat No‐lead (PQFN)

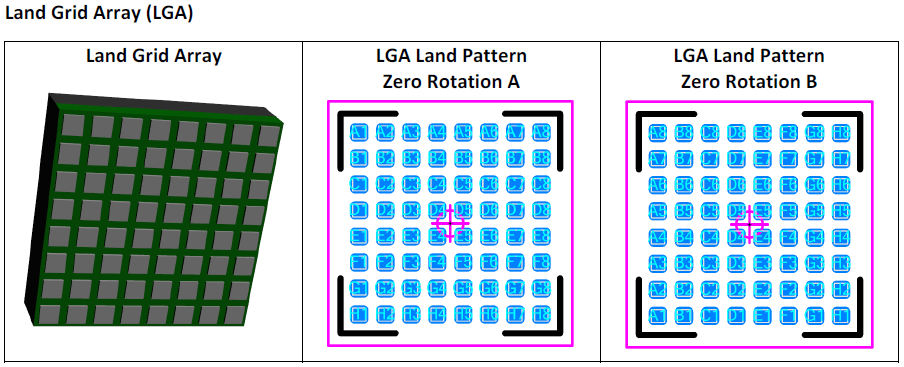

Land Grid Array (LGA)

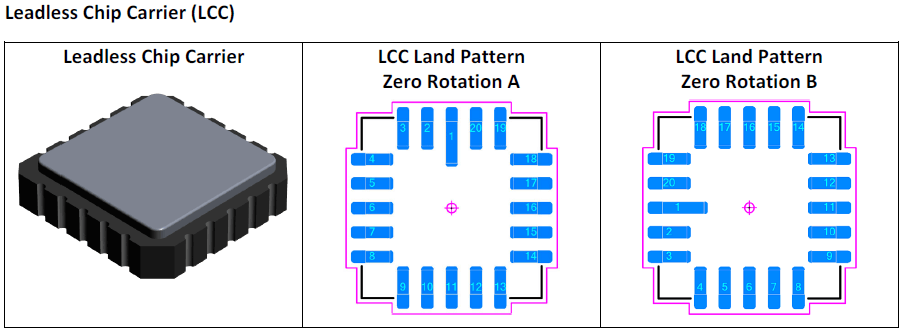

Leadless Chip Carrier (LCC)

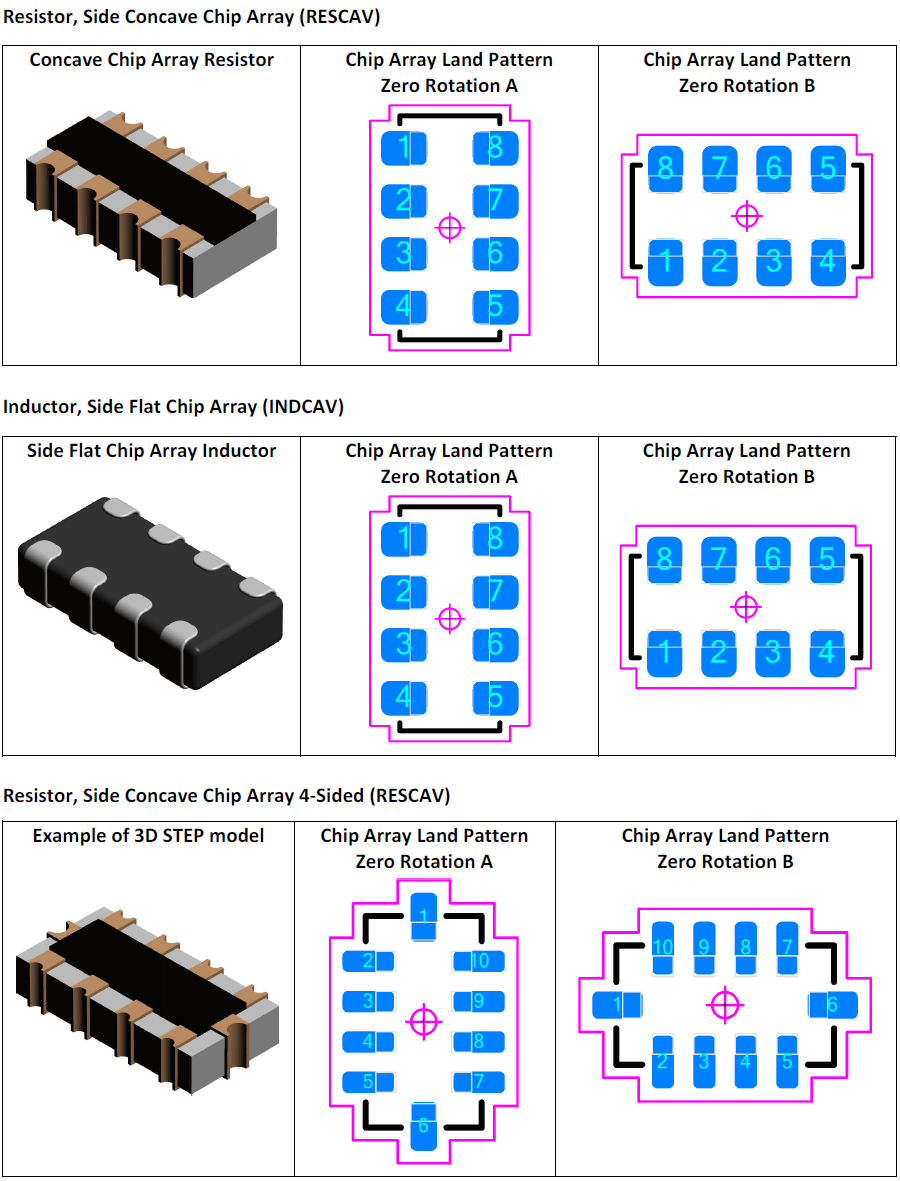

Resistor, Side Concave Chip Array (RESCAV), Inductor, Side Flat Chip Array (INDCAV), Resistor, Side Concave Chip Array 4‐Sided (RESCAV)

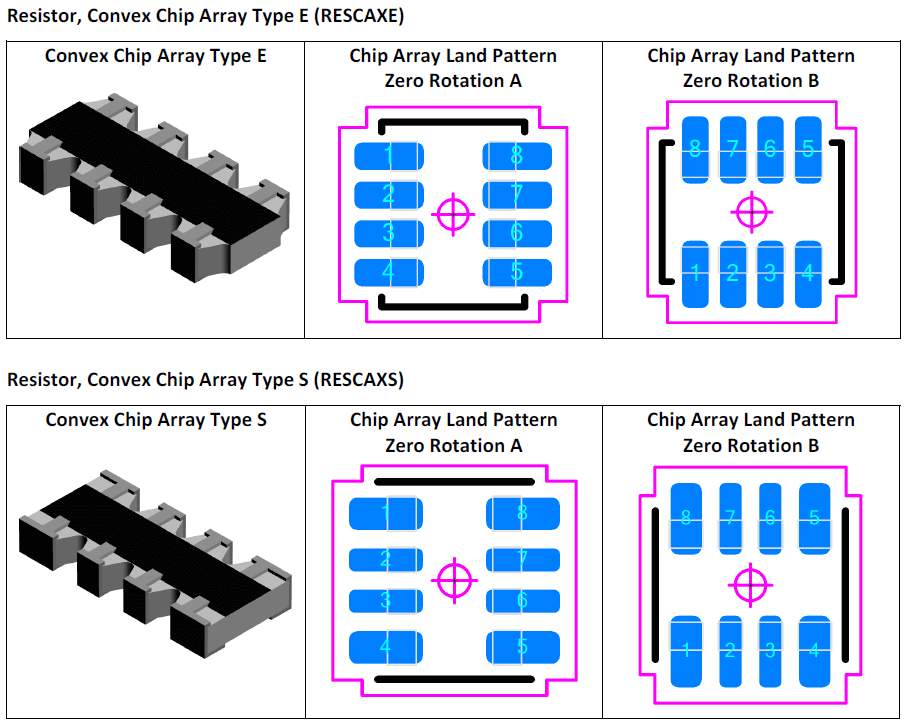

Resistor, Convex Chip Array Type E (RESCAXE), Resistor, Convex Chip Array Type S (RESCAXS)

通孔封装

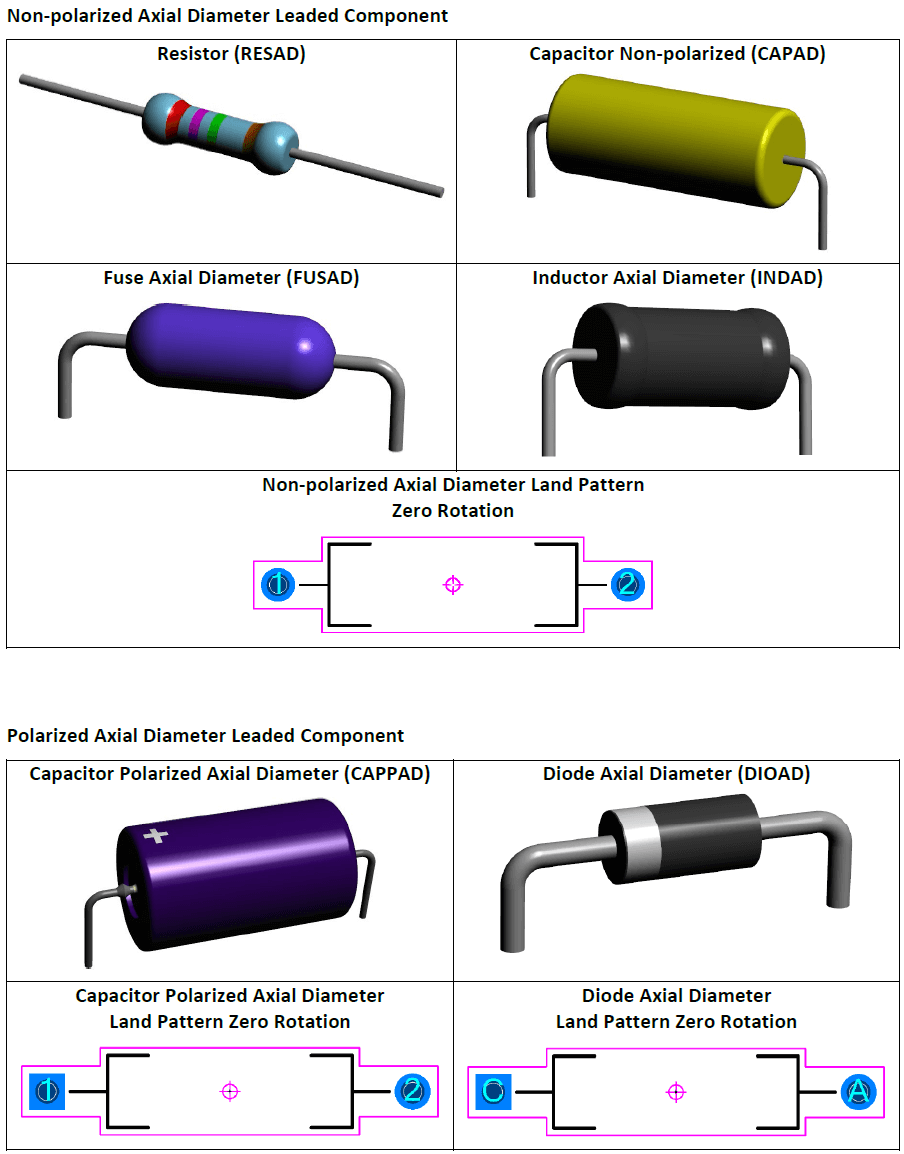

Non-polarized Axial Diameter Leaded Component, Polarized Axial Diameter Leaded Component

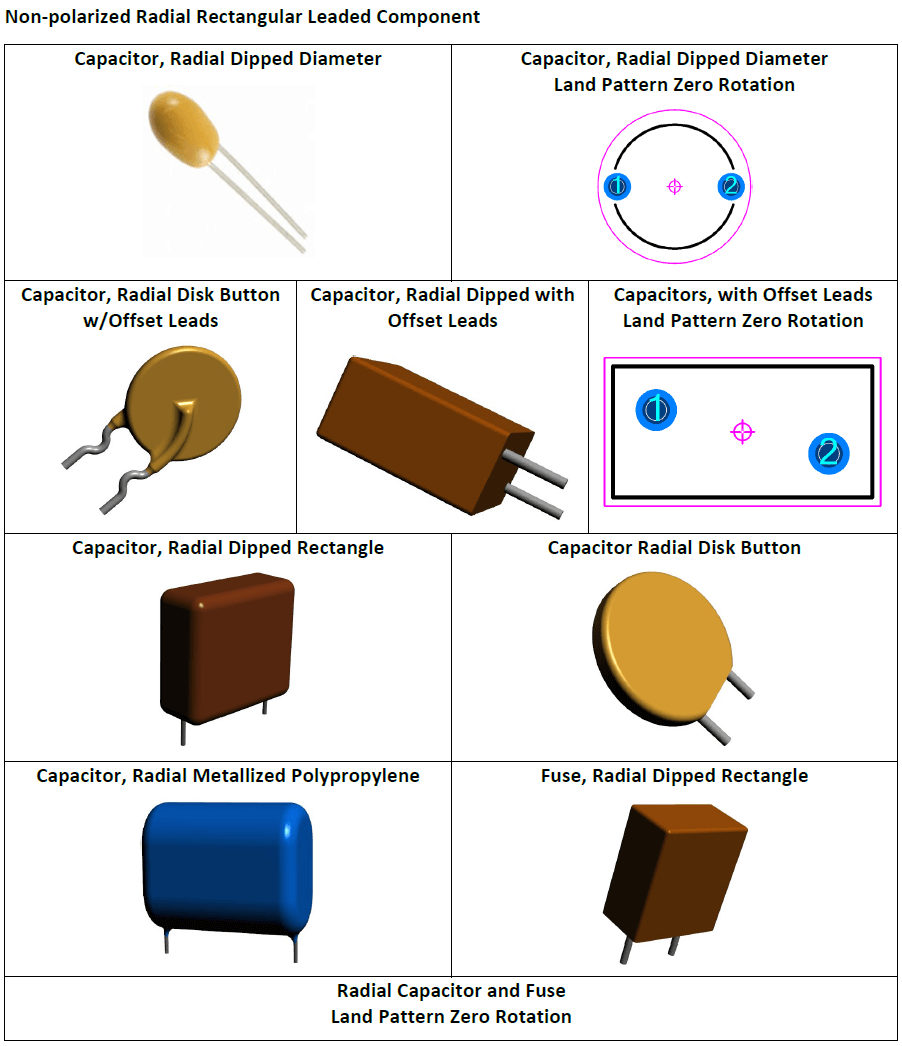

Non-polarized Radial Rectangular Leaded Component

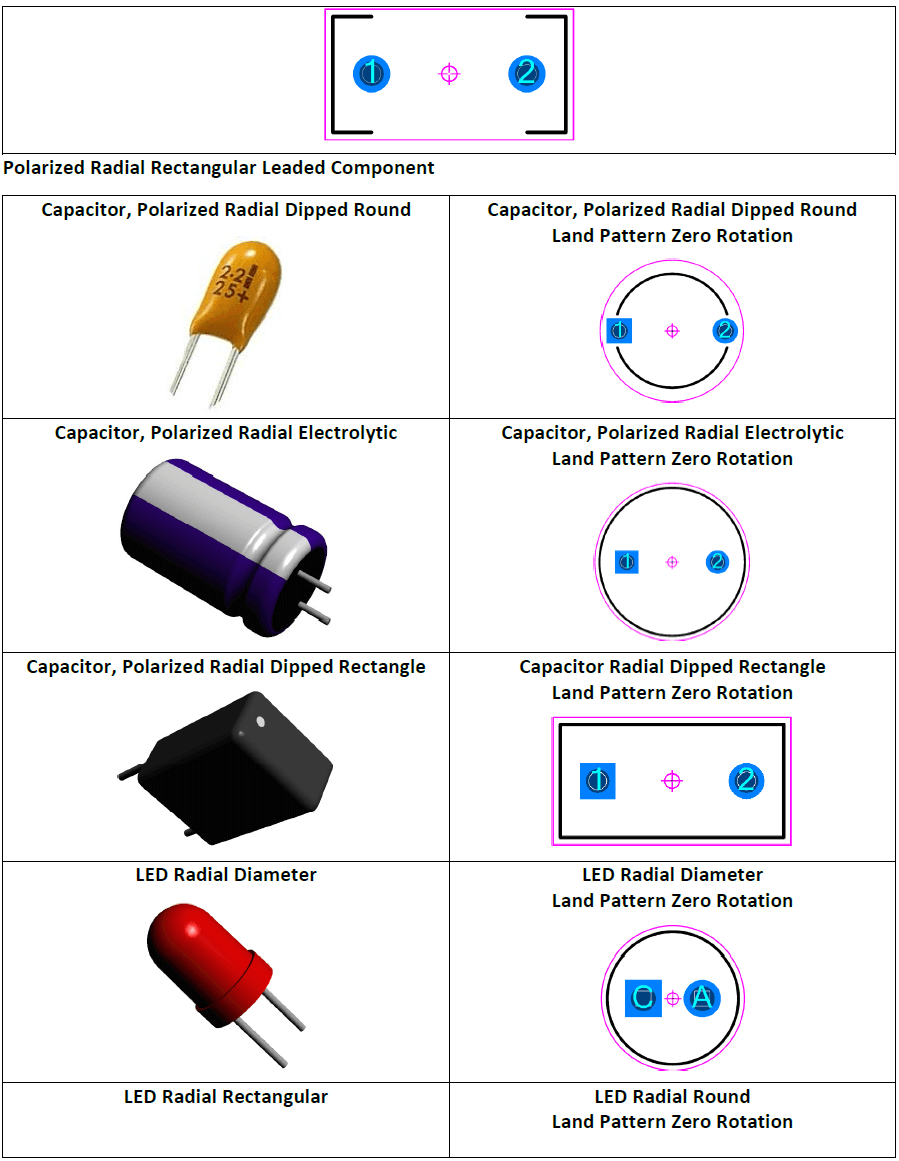

Polarized Radial Rectangular Leaded Component
